Technical Specifications
- Shell Type Range: 10 VA to 750 VA.
- Core Type Range : 1 KVA to 50 KVA ( Resin Cast)
1 KVA to 100 KVA (Tape Insulated) - Available in 1 phase & 3 phase
- Isolation Transformers –Tape Insulated upto
150 KVA. - Products to IS 12021: 2015
Product Features
- Available in Single & Dual cores &
1 phase / 3 phase. - Fibreglass name-plate with engraved specifications
- Shroud for primary & secondary terminals
- Provision for earthing.
- Eye bolts for lifting for 3KVA & above rating.
- Primary /Secondary fuses can be provided as per requirement.
- M.S enclosure (as per IP protection) can be provided.

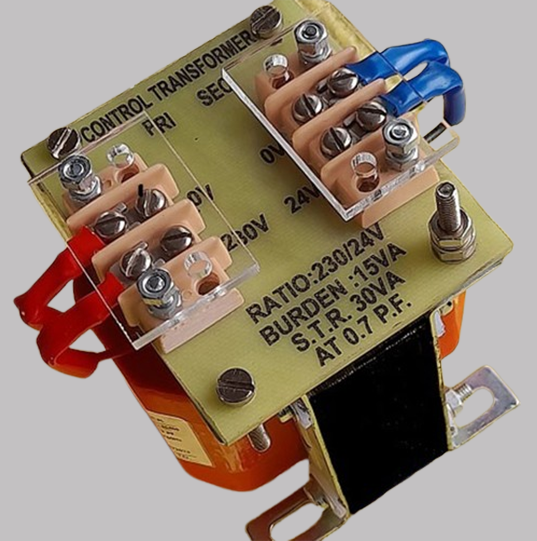

Conventional Resin Cast Control Transformer

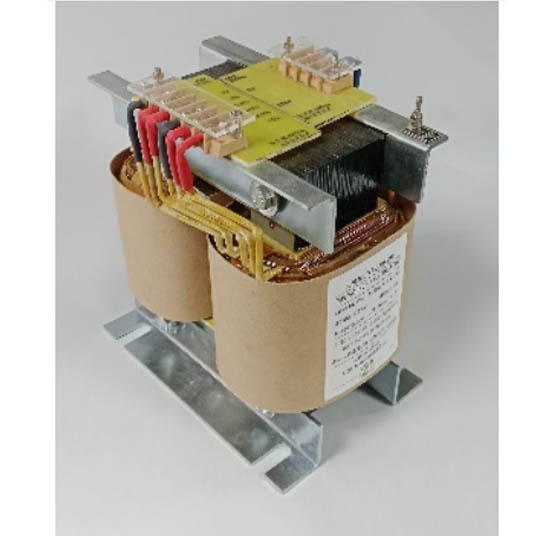

Conventional Tape Insulated Control Transformer

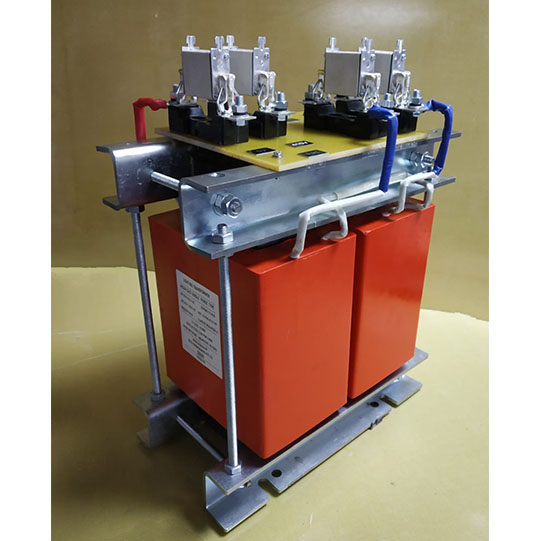

Resin Cast Control Transformer With fuses in Pri & Sec
M.S Enclosure for Isolation Transformer
Resin Cast Control Transformer

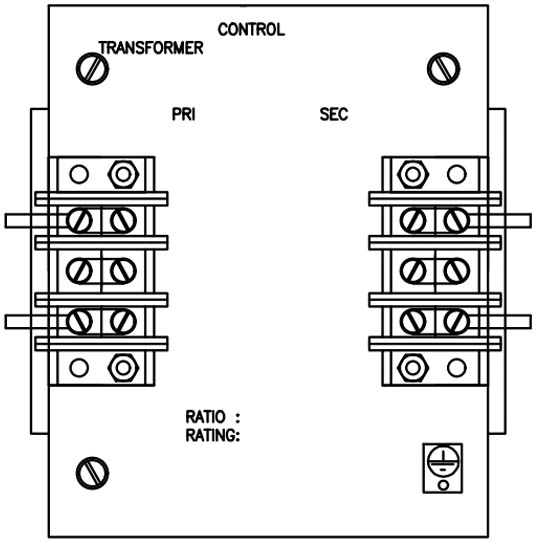

Top View

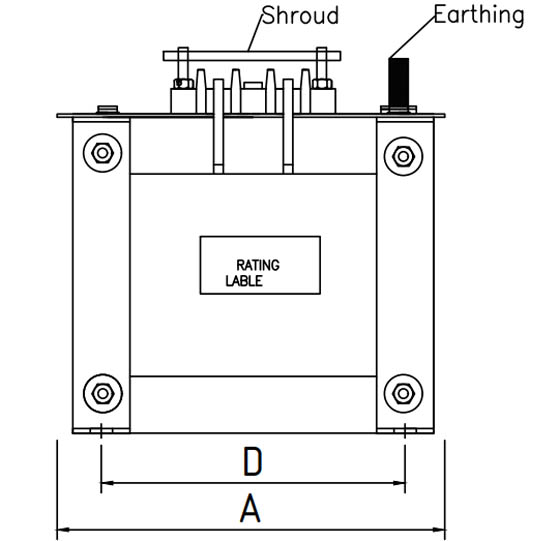

Front View

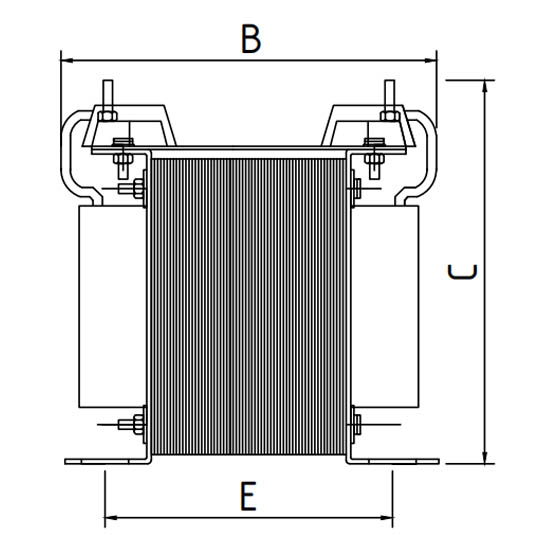

Side View
For dimensions & variants click here
