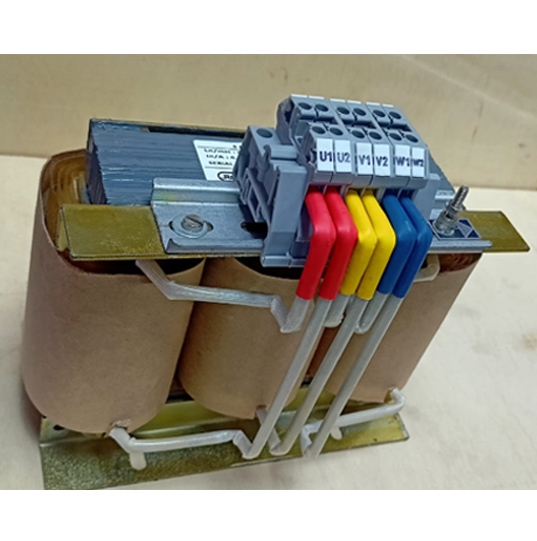

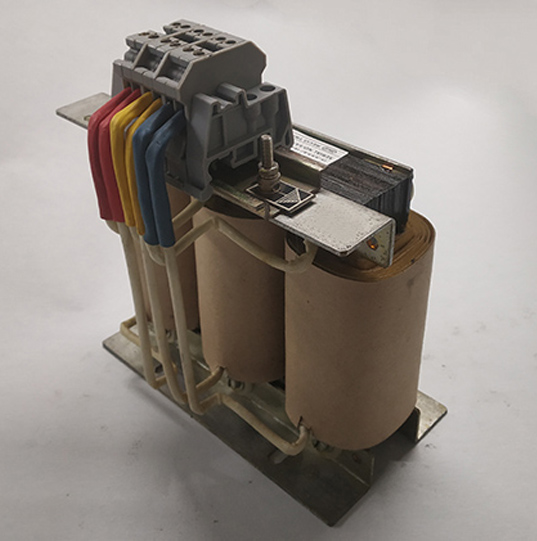

Three Phase Series Choke

(INPUT AND OUTPUT SERIES CHOKES)

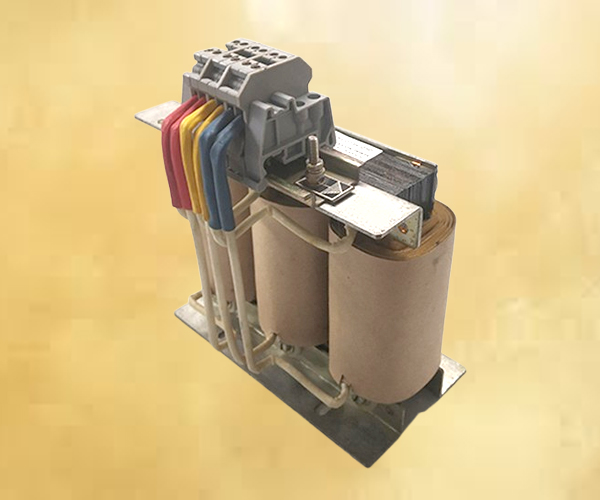

Three Phase Series Choke
Technical Specifications:
Technical Specifications
Type Three Phase Series Choke
Range 0.37 KW to 25 KW
System Voltage 0.66 KV
Frequency 50 Hz
Duty of operation Continuous
Winding Material Electrolytic Copper
Insulation Class "F" class
Impedance As per specifications
Cooling Air Natural
Enquire Now
Ratings and Dimensions:
Dimensions Dimensions in (mm)
Specification Length A Width B Height C Mounting D(L) Mounting E (W)
Input Choke_0.37KW, 1.2A, 6.129mH 125 100 130 100 52
Input Choke_0.55KW, 2.1A, 3.502mH 125 100 140 100 55
Input Choke_0.75KW, 2.1A, 3.502mH 125 100 130 100 52
Input Choke_1.1KW, 2.6A, 2.829mH 125 100 140 100 55
Input Choke_1.5KW, 4.7A, 1.565mH 130 100 160 100 52
Input Choke_2.2KW, 6.3A, 1.167mH 130 100 160 100 52
Input Choke_3.7KW, 8.3A, 0.886mH 130 100 155 100 70
Input Choke_5.5KW, 15.1A, 0.487mH 130 115 160 110 66
Input Choke_7.5KW, 22.1A, 0.333mH 155 120 190 100 65
Input Choke_9.3KW, 31A, 0.237mH 155 145 185 120 90
Input Choke_11KW, 29.9A, 0.246mH 155 145 185 120 90
Input Choke_15KW, 35.2A, 0.209mH 155 145 185 120 90
Input Choke_18.5KW, 42.5A, 0.173mH 155 145 185 150 75
Input Choke_22KW,57A, 0.129mH 190 145 210 150 75
Input Choke_30KW,70.3A 195 140 220 150 75
Input Choke_37KW, 84.2A, 0.087mH 155 140 190 120 85
Output Choke_3.7KW, 9A, 0.817mH 130 100 155 110 70
Output Choke_5.5KW, 15.5A, 0.475mH 130 115 160 100 66
Output Choke_7.5KW, 23A, 0.320mH 155 120 190 120 65
