Voltage Transformers
Voltage Transformers: Resin Cast & Tape Insulated [Single and Three Phase]

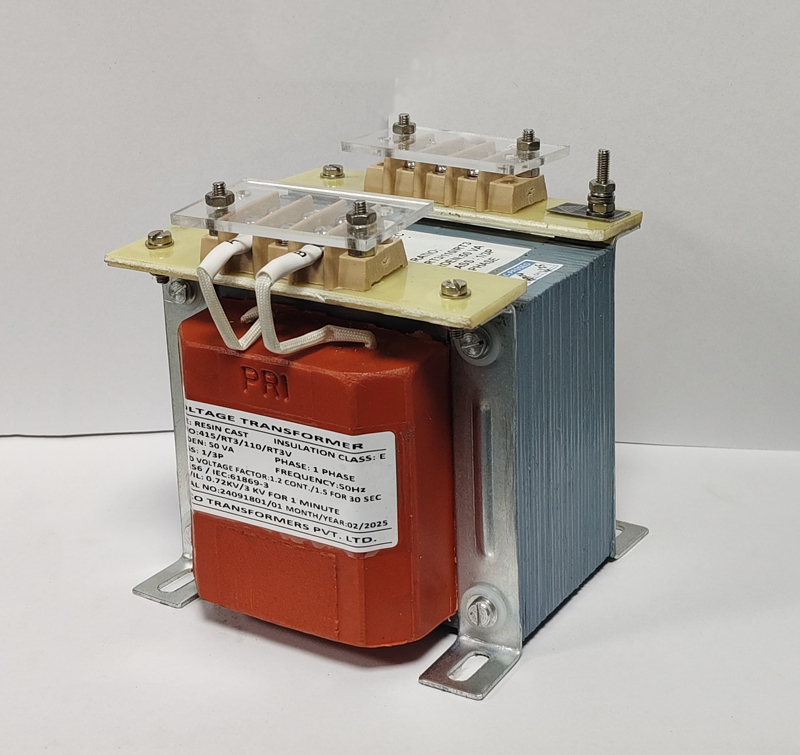

Single Phase Resin Cast Voltage Transformer

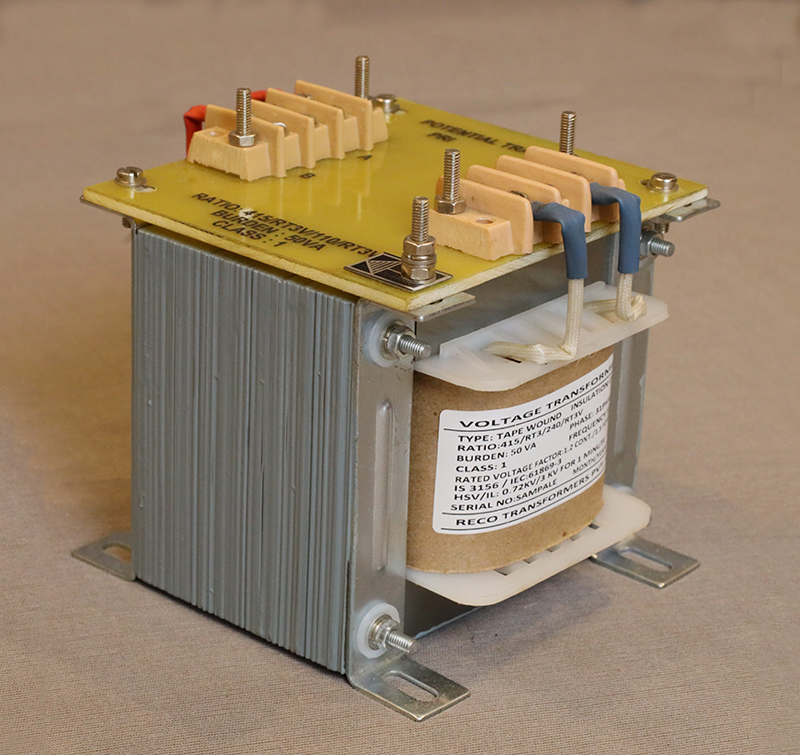

Single Phase Tape Insulated Voltage Transformer

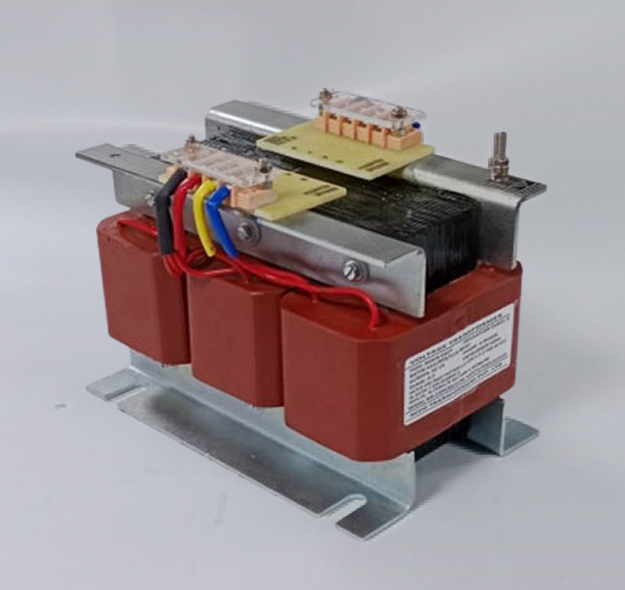

Three Phase Resin Cast Voltage Transformer
Technical Specifications:
- Range: 10 VA to 150 VA.
- Accuracy Class. 0.5, 1, 3P, 0.5/3P, 1/3P.
- Available in Single Core and Dual Core constructions.
- Available for Single Phase and Three phase applications.
Product Features:
- Shroud for Primary and Secondary.
- Provision of Earthing Terminal.
Ratings and Dimensions:
| Ratio | VA | Class | Overall Dimensions(in mm) | ||
|---|---|---|---|---|---|
| Length | Width | Height | |||
| RESIN CAST VT | |||||
| 415/√3/240/√3/230/√3/110/√3 | 10 | 1, 1/3P | 95 | 108 | 115 |
| 415/√3/240/√3/230/√3/110/√3 | 15 | 1, 1/3P | 95 | 120 | 115 |
| 415/√3/240/√3/230/√3/110/√3 | 25 | 1, 1/3P | 95 | 133 | 115 |
| 415/√3/240/√3/230/√3/110/√3 | 40-50 | 1, 1/3P | 115 | 115 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 75 | 1, 1/3P | 115 | 127 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 100 | 1, 1/3P | 130 | 115 | 150 |
| 415/√3/240/√3/230/√3/110/√3 | 150 | 1, 1/3P | 155 | 135 | 160 |
| 415/√3/240/√3/230/√3/110/√3 | 10-15 | 0.5, 0.5/3P | 115 | 103 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 25 | 0.5, 0.5/3P | 115 | 115 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 40-75 | 0.5, 0.5/3P | 155 | 123 | 160 |
| 415/√3/240/√3/230/√3/110/√3 | 100-150 | 0.5, 0.5/3P | 155 | 160 | 160 |
| 415/√3/240/√3/230/√3/110/√3 (Three Phase) | 50 | 1/3P | 205 | 121 | 85 |
| 415/√3/240/√3/230/√3/110/√3 (Three Phase) | 25 | 1/3P | 205 | 121 | 85 |
| TAPE INSULATED VT | |||||
| 415/√3/240/√3/230/√3/110/√3 | 10 | 1, 1/3P | 95 | 108 | 115 |
| 415/√3/240/√3/230/√3/110/√3 | 15-25 | 1, 1/3P | 95 | 133 | 115 |
| 415/√3/240/√3/230/√3/110/√3 | 40 | 1, 1/3P | 115 | 115 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 50 | 1, 1/3P | 115 | 130 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 75 | 1, 1/3P | 115 | 142 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 100 | 1, 1/3P | 130 | 130 | 150 |
| 415/√3/240/√3/230/√3/110/√3 | 150 | 1, 1/3P | 155 | 150 | 160 |
| 415/√3/240/√3/230/√3/110/√3 | 10-15 | 0.5, 0.5/3P | 115 | 118 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 25 | 0.5, 0.5/3P | 115 | 130 | 127 |
| 415/√3/240/√3/230/√3/110/√3 | 40 | 0.5, 0.5/3P | 130 | 142 | 150 |
| 415/√3/240/√3/230/√3/110/√3 | 50-75 | 0.5, 0.5/3P | 155 | 138 | 160 |
| 415/√3/240/√3/230/√3/110/√3 | 100-150 | 0.5, 0.5/3P | 155 | 175 | 160 |
