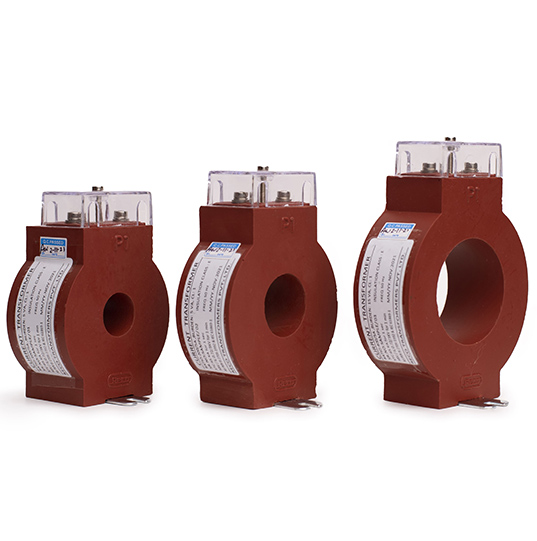

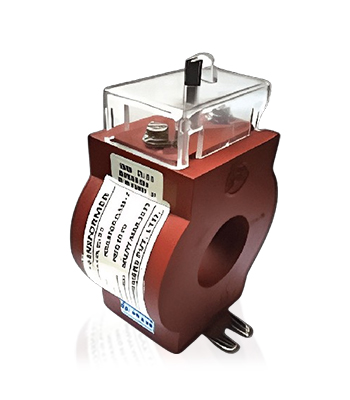

Resin Cast Ring Type CT: Type BPL
| Technical Specifications | ||
|---|---|---|
| Primary Current | 100 A - 6300 A | |
| Secondary Current | 1 A & 5 A | |
| Burden | 1.25 VA to 20 VA | |
| Accuracy Class | Metering | 1.0, 0.5, 0.5S, 0.2 and 0.2S |
| Protection | 5P10, 5P15, 5P20 and PS Class | |
| HSN Code | 85043100 | |
- For PS Class CT, For given knee point voltage (Vk) and RCT value.
- For CT's other than above specification, please write to us.
