Technical Specifications
- Primary: 100 A to 6000 A
-
Secondary: 1 A and 5 A
Rating: 1.25 VA to 30 VA - Accuracy Class – Metering: 1.0, 0.5, 0.5s, 0.2, 0.2s, 0.1, 3 and 5
- Accuracy Class – Protection 5P5, 5P10, 5P15, 5P20, 5P25, 5P30, 10P5, 10P10, 10P15, 10P20, 10P25, 10P30 and PS class
- Products to IS 16227:2016 & IEC 61869:2012
Product Features
- Compact design with slots for busbar mounting clamps
- Base inserts for mounting CT on panel

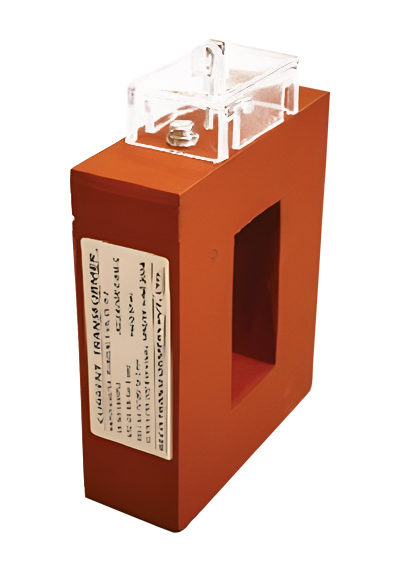

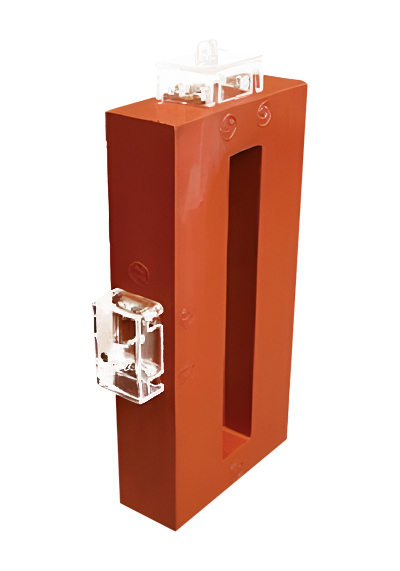

- Location of secondary terminals- on longer side or shorter side or both
- Shroud for secondary terminals

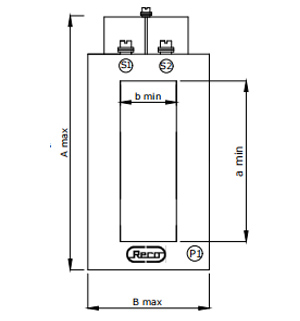

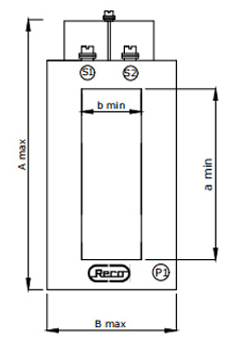

Front View

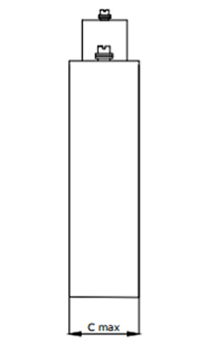

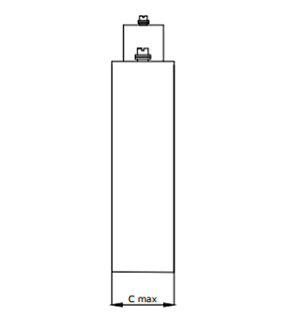

Side View
For dimensions & variants click here
